Select Cable Type
Choose the cable family that suits your frequency, environment and mechanical requirements
✓

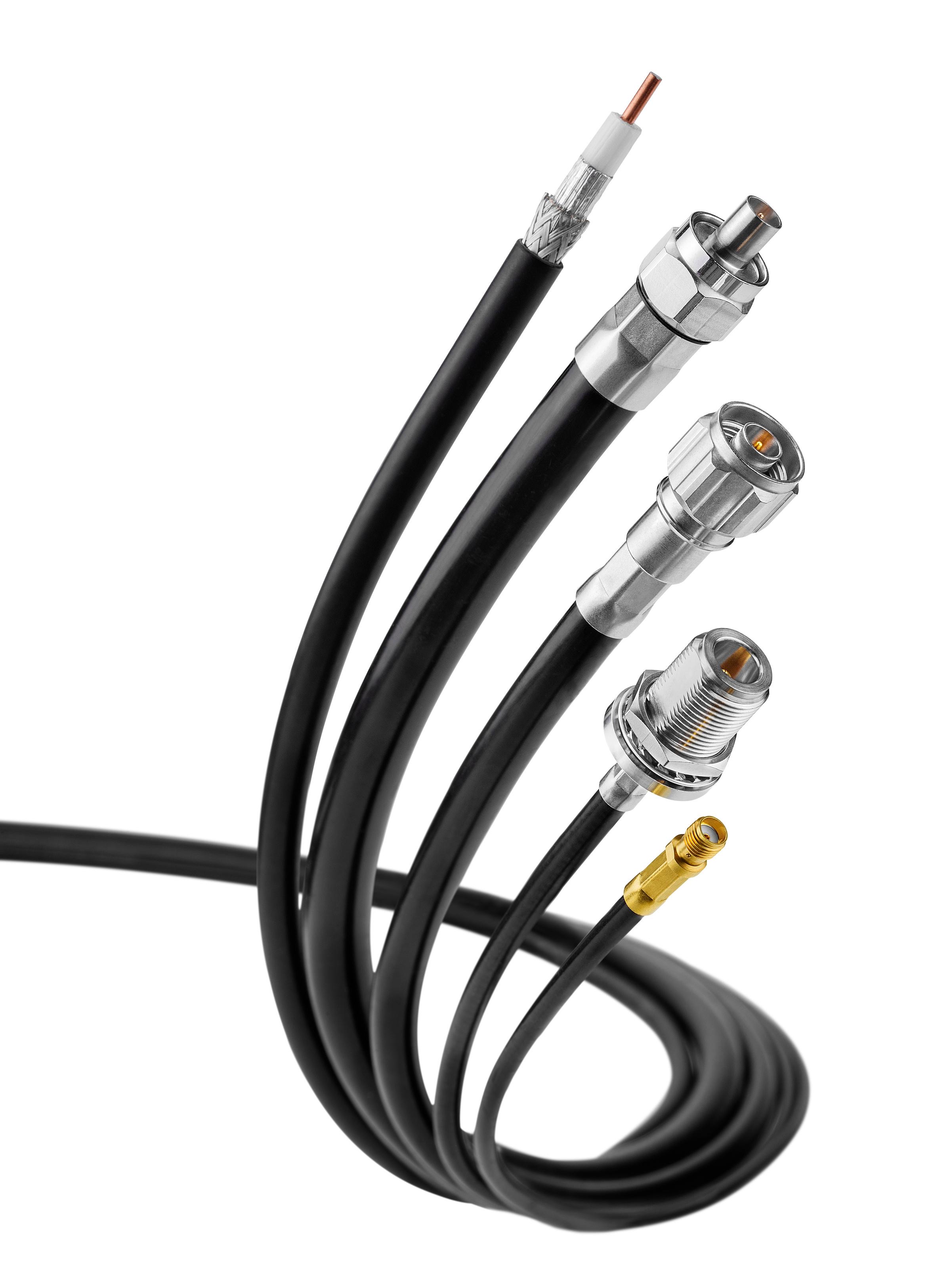

DC – 18 GHz
Flexible RF Cables
General-purpose flexible assemblies up to 18 GHz. Ideal for telecom, test equipment and aerospace routing.
Flexible RF Cable Assemblies
General Purpose Series
FrequencyDC – 18 GHz
Impedance50 Ω / 75 Ω
Temperature−40°C to +85°C
ConnectorsAll standard types
- Wide frequency range DC to 18 GHz
- Low loss characteristics for signal integrity
- 50 Ω and 75 Ω impedance options
- RoHS compliant, halogen-free options available
✓

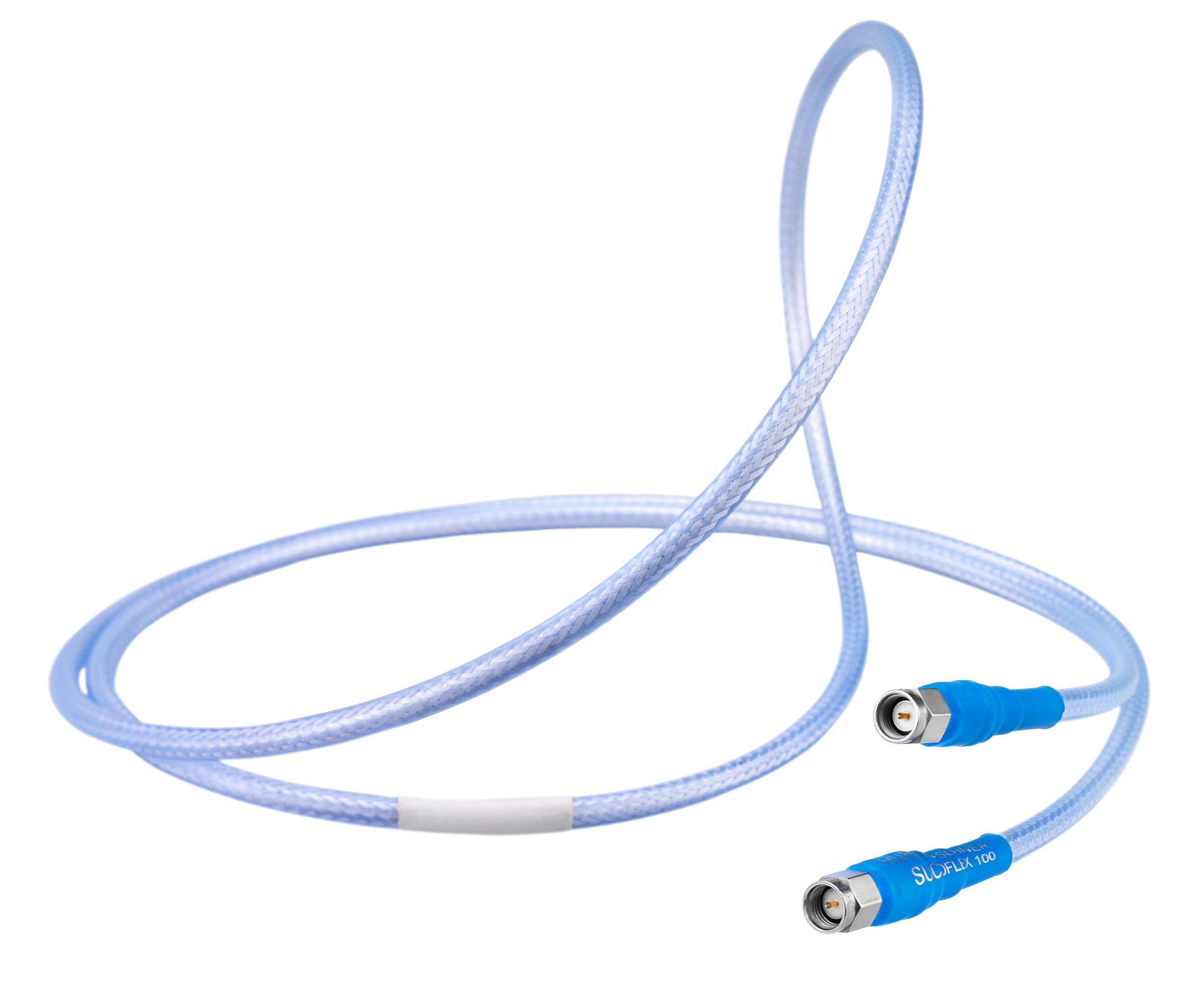

DC – 70 GHz
Microwave Cables
High-performance assemblies to 70 GHz for defence, industrial and precision test environments.
SUCOFLEX Microwave Cable Assemblies
Defence / Test Grade
FrequencyDC – 70 GHz
Impedance50 Ω
Temperature−55°C to +125°C
StandardMIL-DTL-17
- DC to 70 GHz operating range
- Exceptional phase stability with flexure
- Very low insertion loss
- MIL-DTL-17 qualified options available
✓
DC – 40 GHz
Hand Formable
Shape without tools, retains form. Combines semi-rigid stability with hand-forming convenience to 40 GHz.
SUCOFORM Hand Formable Cables
Hand Formable Series
FrequencyDC – 40 GHz
Impedance50 Ω
FormingTool-free, no spring-back
Outer conductorSoft copper/aluminium
- Hand formable without special tools
- No spring-back after forming
- Excellent electrical performance to 40 GHz
- Cost-effective alternative to semi-rigid
✓

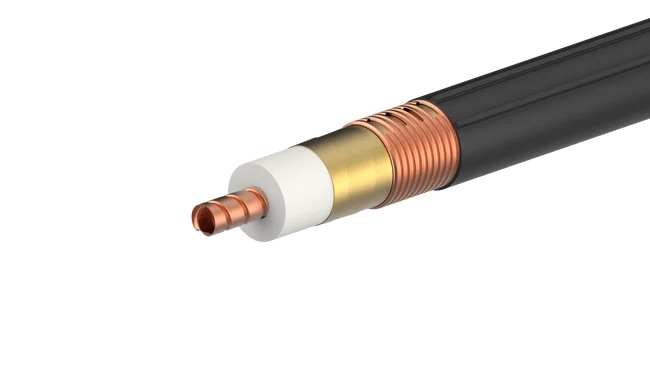

DC – 6 GHz
Corrugated RF
Ultra-low loss, low intermodulation assemblies to 6 GHz. Ideal for cellular base stations and broadcast.
LISCA Corrugated RF Cables
Infrastructure / Broadcast
FrequencyDC – 6 GHz
Impedance50 Ω
Intermod−165 dBc typical
Sizes¼″ · ⅜″ · ½″ · ⅞″+
- Ultra-low loss for long cable runs
- Intermodulation −165 dBc typical
- Weatherproof for outdoor installations
- 20-year outdoor service life
✓
DC – 40 GHz
Semi-Rigid Microwave
Solid copper outer conductor for ultimate shielding and phase stability. DC to 40 GHz precision performance.
Semi-Rigid Microwave Cables
Precision / Military
FrequencyDC – 40 GHz
Impedance50 Ω
Shielding100% (solid Cu outer)
Diameters0.020″ – 0.250″
- Solid copper outer for 100% shielding
- Exceptional phase and amplitude stability
- Very low VSWR and insertion loss
- Military, space and test equipment use
✓

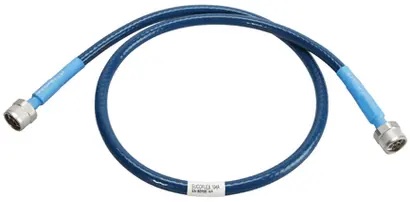

DC – 50 GHz
Flexible Test
100,000+ flexure cycle rated. Phase stable to ±2°. Calibration-grade stability for VNA and high-frequency test.
SUCOTEST High-Performance Test Cables
Calibration / VNA Grade
FrequencyDC – 50 GHz
Phase stability±2° with flexure
Flex life100,000+ cycles
Impedance50 Ω
- Phase stability ±2° with flexure
- Armoured construction, maximum durability
- Over 100,000 flexure cycle rated
- Phase-matched cable sets available
Configure Connectors
Select and configure the connector type, gender and angle for each end of the assembly
Images are for illustration purposes only.
Connector A — Side 1
First end of assembly
Connector B — Side 2
Second end of assembly
Cable Specifications
Define dimensions, electrical requirements, options and order quantity
Images are for illustration purposes only.
Assembly Dimensions
Choose one length — either L1, L2 or L3 — and enter the value in millimetres.
Electrical & Order
toGHz
Environmental Options
Testing Requirements
Additional Requirements / Notes
0 / 500
Configuration Summary
Review your complete cable assembly specification before requesting a quotation
Images are for illustration purposes only.
Cable Assembly Diagram
SMA Male
Straight
Flexible RF Cable
1000mm ±10mm
SMA Female
Straight
Cable Specifications
Cable TypeFlexible RF
Frequency Range0 – 18 GHz
Impedance50 Ω
Order Quantity1 unit
Dimensions
Cable Length (L1)—
Connector Centres (L2)—
Overall Length (L3)—
Tolerance±10mm
Connector A — Side 1
TypeSMA
GenderMale (Plug)
AngleStraight
Connector B — Side 2
TypeSMA
GenderFemale (Jack)
AngleStraight
Options & Testing
Environmental OptionsStandard
Testing RequirementsBasic QC
Your Contact Details
